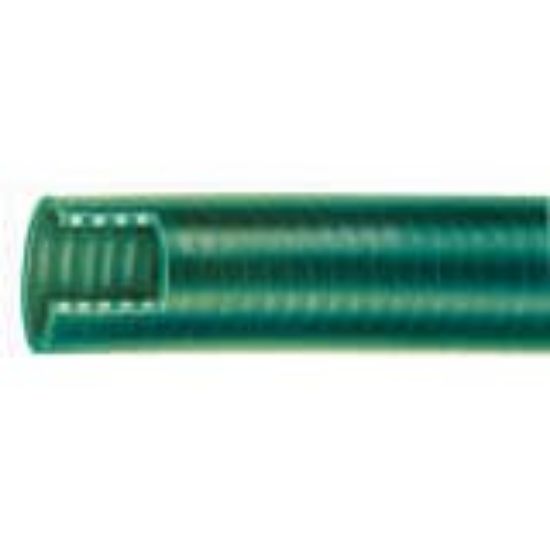

7560-2500 - DYNAFLEX® PVC Standard Duty Suction Hose, Series 7560

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	65 in stock

SKU 7560-2500

$5.15/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	75
Hose I.D. (inch)	2-1/2	Specifications Met	N/A
Package Type	Coil	Length per Package	100
Maximum Operating Temperature	140	Cover Color	Green
Cover Material	PVC	Cover Structure	Smooth
Hose Inner Tube Material	Green	Weight	0.80
Minimum Bend Radius	11	Inside Diameter	2-1/2
Maximum Operating Pressure	75	Design Factor	3:1
Media	Dry Abrasive Powders (Debris)	Outside Diameter	2.810
Hose Reinforcement Material	PVC Helix	Minimum Operating Temperature	23
Vacuum Pressure Rating	22

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
