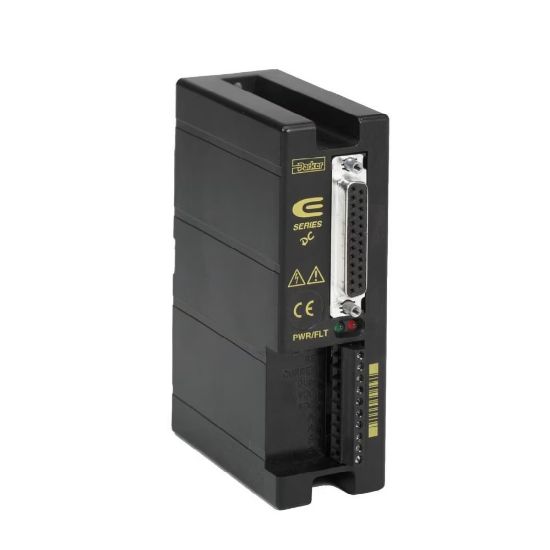

E-DC

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU E-DC

Features

Designed for use with motor inductance range of 0.2 mH–80 mH
Three-state current control allows the drive and motor to run cooler and more efficiently than two-state drives
Selectable resolution up to 50,800 steps/rev
Auto standby reduces motor current (and heating) at rest
Provides 0.2 Amps to 4.8 Amps (peak)
Single 24-48 VDC power supply input
Compatible with a variety of motors
Six predefined current waveforms to optimize smoothness

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	12 oz
Drive Dimensions	5 x 3.6 x 1.6 Inch	Drive Temperature	122 °F
Nominal Chopping Frequency	20 kHz	Phase	2Ø
Output Current	0.2 - 4.8 Amp	Voltage	48 VDC
