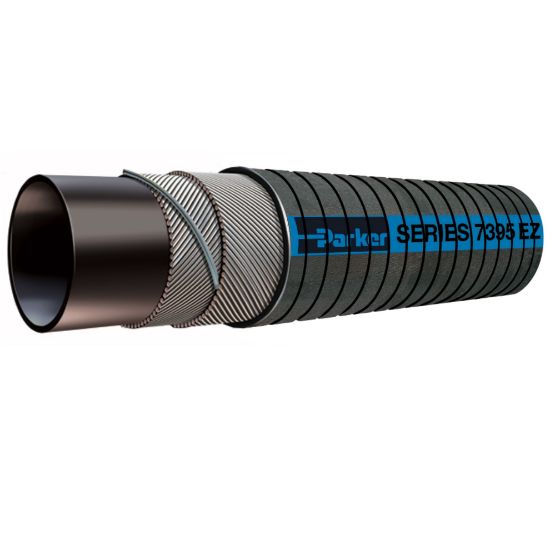

7395-0625025 - E-Z Form GS Suction Hose, General Service, Series 7395

Name: 7395-0625025 - E-Z Form GS Suction Hose, General Service, Series 7395
SKU: 7395-0625025
Price: 15.64 USD
Availability: LimitedAvailability

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

118 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7395-0625025

$15.64/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	25
Hose I.D. (inch)	5/8	Maximum Working Pressure (psi)	75
Maximum Operating Temperature	125 °C	Design Factor	4:1
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Package Type	Coil
Cover Color	Black	Weight	0.27 lb/ft
Inside Diameter	5/8 inch	Media	Coolants
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Compatible Fitting	HY Series
Maximum Operating Pressure	75 psi	Cover Structure	Greek-Corrugated
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Minimum Bend Radius	32.7 mm
Vacuum Pressure Rating	737 mm-Hg	Outside Diameter	1.024 inch
Specifications Met	SAE J20R2, Class D1, UL94 Flame Resistance Rating HB	Minimum Operating Temperature	-45.6 °C
