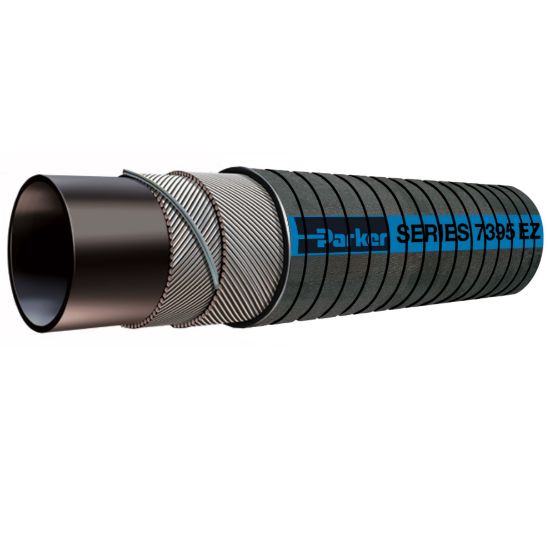

Picture of E-Z Form GS Suction Hose, General Service, Series 7395 - 7395-0750300

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

E-Z Form GS Suction Hose, General Service, Series 7395 - 7395-0750300

E-Z Form GS Greek Corrugated General Service Suction Hose is flexible hose designed for transfer of air, coolant, mild chemicals and water in industrial and mobile applications to 257°F and 75 psi, Series 7395
Availability:
Backordered
SKU 7395-0750300
$13.17
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)3/4
Maximum Working Pressure (psi)75Standard Pack Qty (ft)300
MediaAirDivisionHose Products Division
Maximum Operating Temperature125 °CDesign Factor4:1
Cover MaterialEthylene Propylene Diene Monomer (EPDM)Cover ColorBlack
Inside Diameter19.1 mmPackage TypeReel
Hose Inner Tube MaterialBlackApplicationEngine
Minimum Operating Temperature-45 °CCompatible FittingHY Series
Maximum Operating Pressure75 psiWeight0.35 lb/ft
Cover StructureGreek-CorrugatedHose Reinforcement Material2 Plies of Textile with Wire Helix
Minimum Bend Radius36.3 mmVacuum Pressure Rating29 Inch-Hg
Outside Diameter30.0 mmSpecifications MetSAE J20R2, Class D1, UL94 Flame Resistance Rating HB
