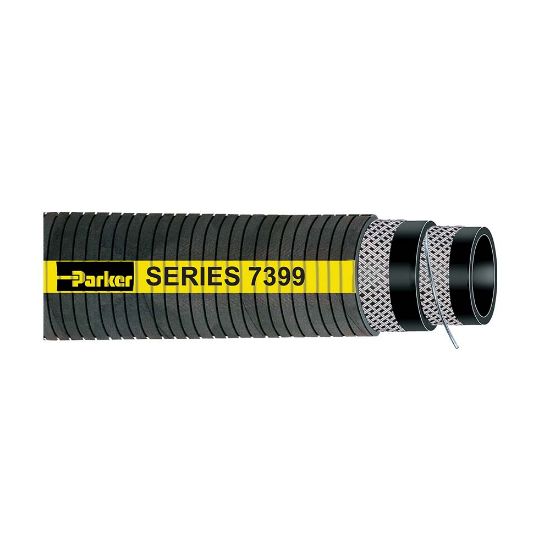

7399-0500025 - E-Z Form HT Flexible Resistant Suction Hose, High Temperature, Series 7399

Name: 7399-0500025 - E-Z Form HT Flexible Resistant Suction Hose, High Temperature, Series 7399
SKU: 7399-0500025
Price: 17.40 USD
Availability: InStock

E-Z Form HT Greek Corrugated High Temperature Oil Resistant Suction Hose is an extremely flexible, heat resistant hose designed for transfer of hot oil in engine applications to 302°F and 150 psi, Series 7399

Availability:

10 in stock

Springfield, MO

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7399-0500025

$17.40/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Standard Pack Qty (ft)	25	Maximum Working Pressure (psi)	150
Minimum Operating Temperature	-40	Specifications Met	N/A
Design Factor	4:1	Inside Diameter	1/2
Maximum Operating Temperature	150	Weight	0.29
Package Type	Carton	Cover Color	Black
Media	Fuels (Diesel) - Check fuel type with our catalogue chart.	Cover Structure	Greek-Corrugated
Maximum Operating Pressure	10	Compatible Fitting	7661 Series
Hose Inner Tube Material	Chloroprene	Hose Reinforcement Material	2 Plies of Textile with Wire Helix
Vacuum Pressure Rating	29	Minimum Bend Radius	0.9
Cover Material	Hydrogenated Nitrile	Outside Diameter	0.936
Fitting Type	HY Series
