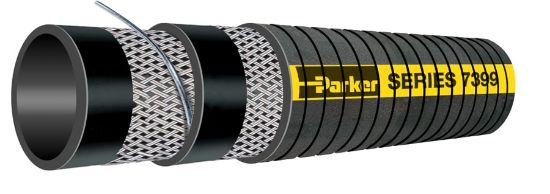

7399-0500300 - E-Z Form HT Flexible Resistant Suction Hose, High Temperature, Series 7399

E-Z Form HT Greek Corrugated High Temperature Oil Resistant Suction Hose is an extremely flexible, heat resistant hose designed for transfer of hot oil in engine applications to 302°F and 150 psi, Series 7399

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 7399-0500300

$14.06/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Maximum Working Pressure (psi)	150	Standard Pack Qty (ft)	300
Maximum Operating Temperature	302 °F	Minimum Operating Temperature	-40 °F
Specifications Met	N/A	Design Factor	4:1
Inside Diameter	1/2 inch	Maximum Operating Pressure	10 bar
Cover Color	Black	Package Type	Reel
Hose Inner Tube Material	Black	Weight	0.43 kg/m
Outside Diameter	22.9 mm	Compatible Fitting	7661 Series
Cover Structure	Wrapped	Hose Reinforcement Material	2 Plies of Textile with Wire Helix
Minimum Bend Radius	24.1 mm	Vacuum Pressure Rating	29 Inch-Hg
Media	Fuels (Hot Oil)	Cover Material	Hydrogenated Nitrile
Fitting Type	HY Series
