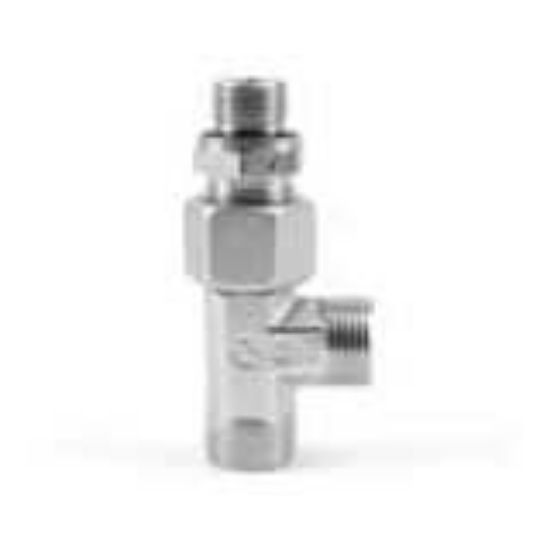

EL12LREDCF

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	Backordered

SKU EL12LREDCF

$49.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	ISO 9974 DIN ISO 8434 ISO 1179
Min. Operating Temperature	-40 °F	Series	EO Light
Style	Flareless and Bite Type	For Fluid Type	Other Fluids Upon Request Hydraulic Oil Water
Material	Steel	Max. Operating Pressure	5801 psi 400 Bar 40 mpa
Connection Size 1	12 MM (O.D.) M18 x 1.5	Connection Size 2	12 MM (O.D.) M18 x 1.5
Shape	Run Tee	Optional Accessories	Pre-Assembled with Nut and EO-PSR Cutting Ring
Max. Operating Temperature	482 °F 250 °C	Technology	Fluid & Gas Handling Hydraulics
Connection Type 1	Male Metric 24° Cone	Connection Type 2	Male Metric 24° Cone
Connection Type 3	Male BSPP	Type	Tee Fitting
Configuration	Tube to Port	Connection Size 3	G 3/8
Seal Material	NBR	Finish	Zinc Nickel Plated (ToughShield Plus)
Parker Group	Fluid Connector	Parker Division	Tube Fitting
