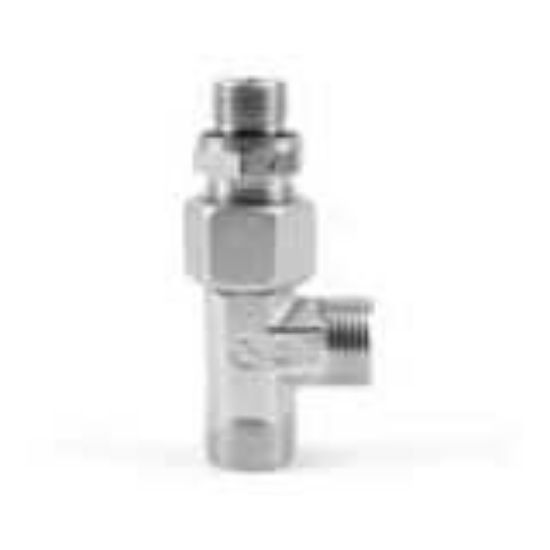

EL20ZSREDCF

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU EL20ZSREDCF

$125.83/each

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	DIN ISO 8434 ISO 9974 ISO 1179
Min. Operating Temperature	-40 °F	Series	EO Heavy
Style	Flareless and Bite Type	Connection Size 1	20 MM (O.D.) M30 x 2.0
For Fluid Type	Water Hydraulic Oil Other Fluids Upon Request	Material	Steel
Max. Operating Pressure	6091 psi 420 Bar 42 mpa	Optional Accessories	Pre-Assembled with EO-2 Functional Nut
Max. Operating Temperature	482 °F 250 °C	Shape	Run Tee
Connection Size 2	20 MM (O.D.) M30 x 2.0	Technology	Fluid & Gas Handling Hydraulics
Connection Type 1	Male Metric 24° Cone	Connection Type 2	Male Metric 24° Cone
Connection Type 3	Male BSPP	Type	Tee Fitting
Configuration	Tube to Port	Connection Size 3	G 3/4
Finish	Zinc Nickel Plated (ToughShield Plus)	Seal Material	NBR
Parker Group	Fluid Connector	Parker Division	Tube Fitting
