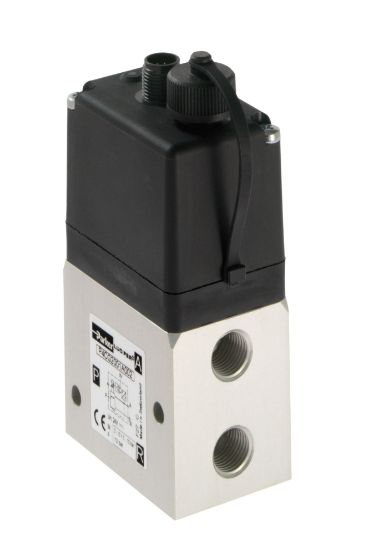

Picture of Electronic Proportional Regulators - EPP4 Series - P4CG2001C001

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Electronic Proportional Regulators - EPP4 Series - P4CG2001C001

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.
Availability:
Backordered
SKU P4CG2001C001
$1,781.59
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAThread TypeBSP
Port Size1/4"Electrical ConnectionM23 Mini; 6-Pin | M12 Micro; 6-Pin | Conduit
ConfigurationSoftware ProgrammableDivisionPneumatic Division
Maximum Flow Rate41 | 88 SCFMMedia40μ Filtered compressed air | Inert gas
Operating Temperature0° to 60° °CPort TypeBSP
Input Voltage24VDC | 12VDC | 24VAC | 120/110VACControl Method8-pin M12 & 5-pin M12
Power Consumption1.2 | 1.6 | 1.8 | 2.4 WPort Size1/4"
Weight6.3 lbResponse TimeFilling: 20 / Emptying: 20 ms
Product TypeElectronic Proportional Regulator (pulse width modulated)Pressure Control Range0 to 10.5 bar
Display Typen/aInlet Pressure Rating0 to 10.5 bar
Ingress Protection RatingNEMA 4
