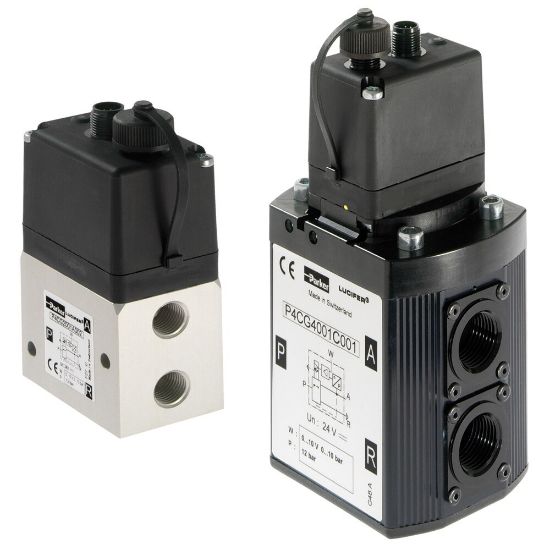

Picture of Electronic Proportional Regulators - EPP4 Series - P4CN4001C001

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Electronic Proportional Regulators - EPP4 Series - P4CN4001C001

EPP4 programmable electronic proportional regulator allows for regulation of outlet pressure proportionally to an electrical control signal. This unit utilizes a user friendly Calys software to configure all parameters.
Availability:
Backordered
SKU P4CN4001C001
$1,859.31
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAThread TypeNPT
Port Size1/2"Maximum Flow Rate70 | 150 m3/hour
Response TimeFilling: 20 / Emptying: 20 msProduct TypeElectronic Proportional Regulator (pulse width modulated)
Display Typen/aInlet Pressure Rating0 to 10.5 bar
Ingress Protection RatingNEMA 4Electrical ConnectionM23 Mini; 6-Pin | M12 Micro; 6-Pin | Conduit
Port TypeNPTConfigurationSoftware Programmable
DivisionPneumatic DivisionMedia40μ Filtered compressed air | Inert gas
Operating Temperature32° to 140° °FWeight6.3 lb
Pressure Control Range0 to 150 psigInput Voltage24VDC | 12VDC | 24VAC | 120/110VAC
Control Method8-pin M12 & 5-pin M12Port Size1/2"
Power Consumption1.2 | 1.6 | 1.8 | 2.4 W
Product resources

Literature and Reference Materials
