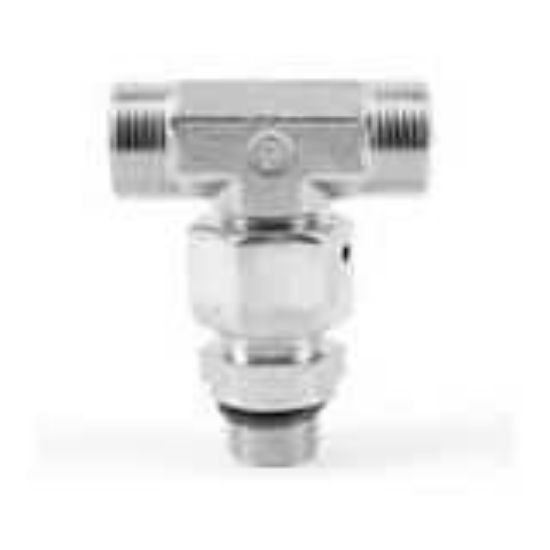

ET12ZLREDCF

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	16 in stock

SKU ET12ZLREDCF

$59.54/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Optional Accessories	Pre-Assembled with EO-2 Functional Nut
Connection Size 2	12 MM (O.D.) M18 x 1.5	Shape	Branch Tee
Max. Operating Temperature	482 °F 250 °C	Technology	Fluid & Gas Handling Hydraulics
Connection Type 1	Male Metric 24° Cone	Connection Type 2	Male Metric 24° Cone
Connection Type 3	Male BSPP	Type	Tee Fitting
Standard	ISO 1179 DIN ISO 8434 ISO 9974	Min. Operating Temperature	-40 °F
Series	EO Light	Style	Flareless and Bite Type
Connection Size 1	12 MM (O.D.) M18 x 1.5	Max. Operating Pressure	5801 psi 400 Bar 40 mpa
For Fluid Type	Other Fluids Upon Request Hydraulic Oil Water	Material	Steel
Finish	Zinc Nickel Plated (ToughShield Plus)	Seal Material	NBR
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Configuration	Tube to Port	Connection Size 3	G 3/8
