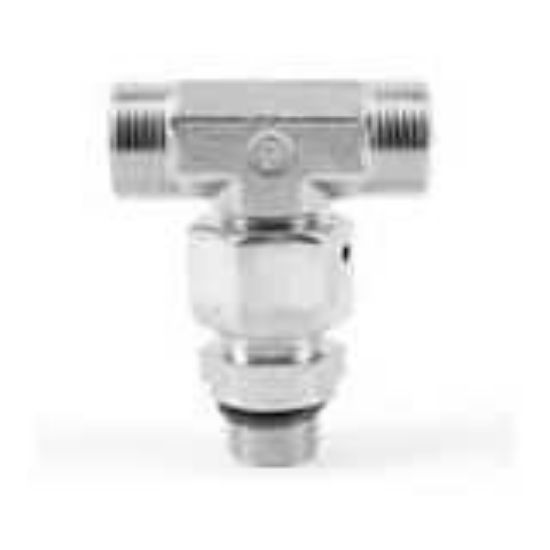

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

ET16SREDCF

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU ET16SREDCF

$69.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	ISO 1179 ISO 9974 DIN ISO 8434
Min. Operating Temperature	-40 °F	Series	EO Heavy
Style	Flareless and Bite Type	Max. Operating Pressure	9137 psi 630 Bar 63 mpa
Material	Steel	For Fluid Type	Other Fluids Upon Request Hydraulic Oil Water
Connection Size 1	16 MM (O.D.) M24 x 1.5	Connection Size 2	16 MM (O.D.) M24 x 1.5
Max. Operating Temperature	482 °F 250 °C	Shape	Branch Tee
Optional Accessories	Pre-Assembled with Nut and EO-PSR Cutting Ring	Connection Type 1	Male Metric 24° Cone
Technology	Fluid & Gas Handling Hydraulics	Connection Type 2	Male Metric 24° Cone
Type	Tee Fitting	Connection Type 3	Male BSPP
Configuration	Tube to Port	Connection Size 3	G 1/2
Finish	Zinc Nickel Plated (ToughShield Plus)	Parker Group	Fluid Connector
Seal Material	NBR	Parker Division	Tube Fitting
