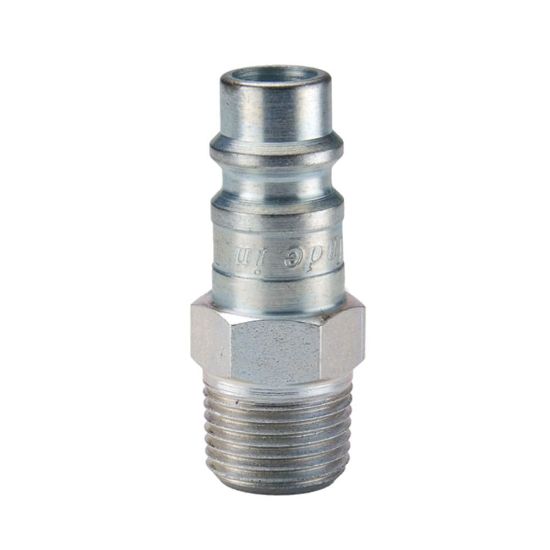

Picture of European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series - 25SFAN17SXZ

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series - 25SFAN17SXZ

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU 25SFAN17SXZ
$7.49
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody Size (inch)1/4
Hose I.D. (inch)naConnection Thread Size (inch)3/8 - 18
Thread StyleMaleConnection TypeNPTF
Coupling HalfNippleBody MaterialSteel
DivisionQuick Coupling DivisionValve TypeUnvalved
Plating TypeZinc with clear trivalent chromateMaximum Operating Pressure300 psi
ApplicationAirMediaLow pressure fluids and compressed air
DivisionQuick Coupling DivisionMaximum Operating Temperature212.0 °F
Minimum Operating Temperature-4.0 °FInterchange TypeEuropean High Flow
