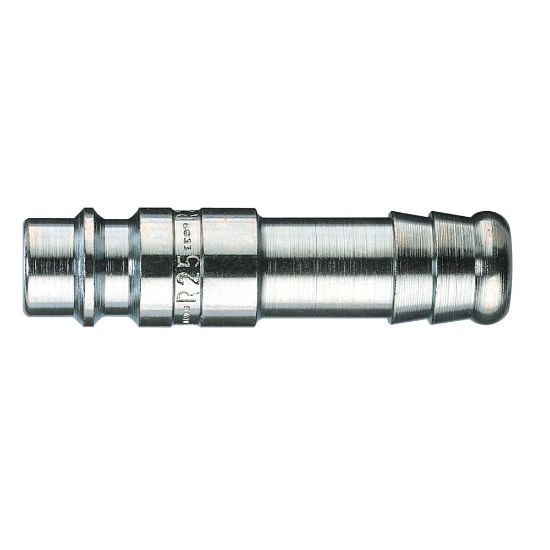

25SFTF06SXZ - European Interchange, High Flow, Quick Connect Air Couplings - Rectus 25 Series

Parker's high flow quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	10 in stock

SKU 25SFTF06SXZ

$11.85/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1/4
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Hose barb	Thread Style	na
Coupling Half	Nipple	Body Material	Steel
Valve Type	Unvalved	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	300 psi	Media	Low pressure fluids and compressed air
Maximum Operating Temperature	212.0 °F	Minimum Operating Temperature	-4.0 °F
Interchange Type	European High Flow

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
