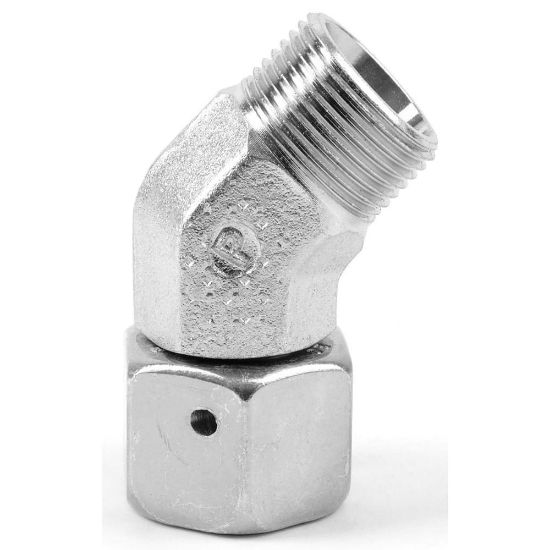

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

EV12LOMD71

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU EV12LOMD71

$234.30/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

The main function of Ermeto DIN tube to swivel high pressure hydraulic tube fittings is to connect different numbers of tubes or hose.This broad range of DIN tube to swivel fittings, types EW, ET, EL, EVW, EVT, EVL, DA, RED up to KOR is available in steel and a stainless steel version. Depending on the specific application, the fittings can be delivered with cutting ring (EO-PSR or DPR) or elastomeric seal (EO-2).

Applications:

Suitable for general hydraulic applications

Features:

Steel and Stainless steel fittings have a high corrosion resistance to aggressive media and environmental influences. These features extend the range of applications.

High pressure: Ermeto DIN tube to tube swivel high pressure hydraulic tube fittings have pressure ratings of up to 800 bar (S series) and 500 bar (L series), so that the fittings can be used in a wide range of applications.

Markets:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type 2	24° DKO Swivel
Tube Outside Diameter 2	12 MM	Connection Type 1	24° Cone End
Tube Outside Diameter 1	12 MM	Series	Light
Shape	Swivel Nut 45° Elbow	Seal Material	FKM (VIT)
Parker Division	Tube Fitting	Parker Group	Fluid Connector
