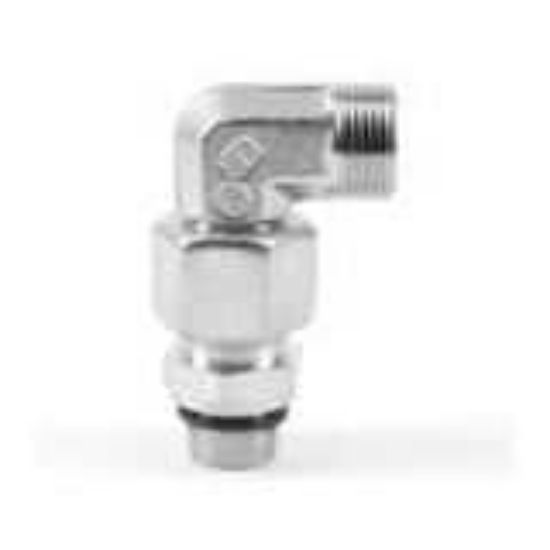

EW42ZLREDCF

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU EW42ZLREDCF

$202.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Series	EO Light	Technology	Fluid & Gas Handling Hydraulics
Style	Flareless and Bite Type	For Fluid Type	Hydraulic Oil Water Other Fluids Upon Request
Max. Operating Pressure	3626 psi 250 Bar 25 mpa	Standard	DIN ISO 8434 ISO 1179 ISO 9974
Connection Size 1	42 MM (O.D.) M52 x 2.0	Connection Type 2	Male BSPP
Min. Operating Temperature	-40 °F	Connection Type 1	Male Metric 24° Cone
Optional Accessories	Pre-Assembled with EO-2 Functional Nut	Shape	Elbow 90°
Connection Size 2	G 1 1/2	Max. Operating Temperature	482 °F 250 °C
Type	Adjustable Swivel	Parker Group	Fluid Connector
Parker Division	Tube Fitting	Configuration	Tube to Port
Seal Material	NBR	Finish	Zinc Nickel Plated (ToughShield Plus)
