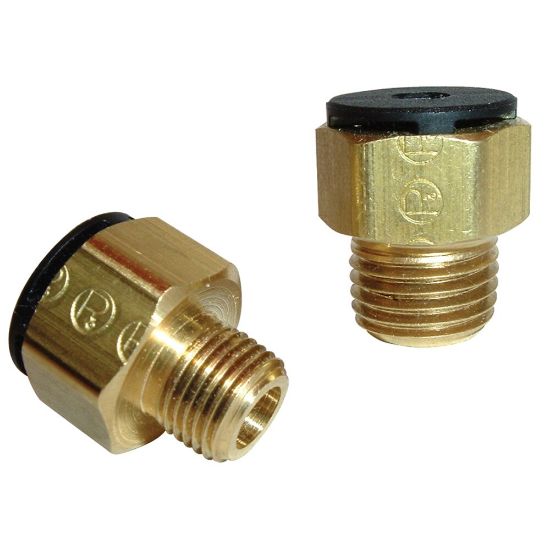

Picture of Exhaust Protector - E9 Series - E90017

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Exhaust Protector - E9 Series - E90017

E9 protectors are intended for mobile or quick venting applications, and breathers that require protection against clogging. They are ideal for valves in harsh conditions and time sensitive applications, such as lift-axles, pushers or tag axles.
Availability:
Backordered
SKU E90017
$14.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size (inch)1/4
DivisionPneumatic DivisionBody MaterialBrass
Port Size1/4"Seal MaterialFluorocarbon
Flow Rate56.5, 62.7 (at 90 psi or 6.2 bar) SCFMOperating Temperature-40° to +70° °C
Maximum Operating Pressure6.89 barMaximum Inlet Pressure Rating0 to 10.3 bar
Product resources

Literature and Reference Materials
