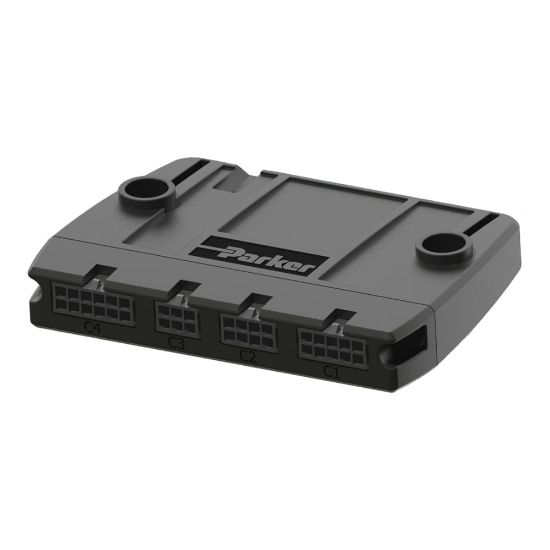

Picture of Expansion controllers - IQAN-XC21/XC22/XC23 - 20077775

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Expansion controllers - IQAN-XC21/XC22/XC23 - 20077775

Parker's IQAN-XC21/XC22/XC23 expansion modules can be added to an IQAN system to increase I/O. They have voltage, digital, PWM and frequency inputs. The outputs are digital. The modules communicate with an IQAN master module over a CAN bus connection.
Availability:
2 Limited Stock
Kansas City, KS2
SKU 20077775
$456.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAModel NumberIQAN-XC21
Controller TypeSlave/Expansion ModuleIngress Protection Rating40
Number of Outputs8Power Supply Voltage9 to 32 VDC
Housing MaterialPlasticDivisionElectronic Motion and Controls Division
Specifications Met2004/108/ECIndustryAgriculture
Maximum Operating Temperature70 °CElectrical ConnectionMolex Micro-Fit 3.0
Number of Inputs20Output Current Rating300 mA
Minimum Operating Temperature-30 °C
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
