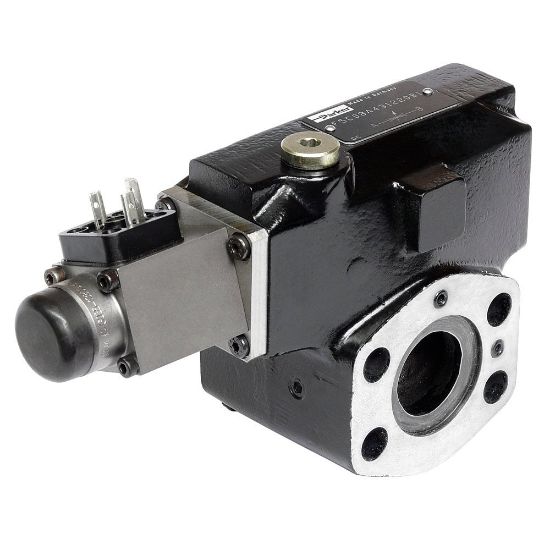

F5C10432X20C1

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU F5C10432X20C1

$5,815.32/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Size	SAE 1 1/4
Function	2-Way	Connection Type	SAE
Pilot Inlet	Internal PD (Y) / Internal PP (X); for Combination with R5P	Technology	Hydraulics
Pilot Inlet / Drain Locations	Internal PD (Y) / internal PP (X); for combination with R5P	Material	Cast Iron
Maximum Flow Rate	190 lpm	Port Connection	SAE 1 1/4
Port Size	Pilot Port G 1/4 Inch	Flange Size	SAE61
Filter Efficiency Rating	ISO 4406; 18/16/13	Actuation Type	Proportional, Solenoid
Maximum Kinematic Viscosity	400 °C	Seal Material	NBR
IP Rating	IP65	Maximum Fluid Temperature	70 °C
Input Voltage	16 VDC	Mounting Position	Unrestricted
Power Supply Voltage	16 V	Maximum Ambient Temperature	60 °C
Mounting Option	Flanged According Sae	Minimum Ambient Temperature	-20 °C
Product Series	Flow valve	Minimum Fluid Temperature	-25 °C
Response Time	350 MS	Minimum Kinematic Viscosity	20 °C
