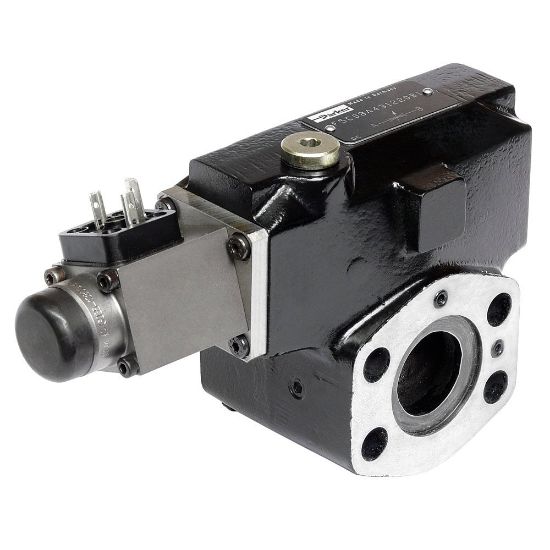

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

F5C10A432X50C1

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU F5C10A432X50C1

$5,815.32/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Proportional throttle valves series F5C with SAE flange are designed to adjust the flow in proportion to the input signal without the need for a manifold block or piping between the valves. They are part of the Parker valve range with SAE flanges which is unique in its variety. The combination of the F5C with pressure compensators R5A or R5P serves as a flow control valve - providing load compensated flow.

The F5C is offered with two types of response time:

Standard 350 ms at 1 l/min pilot flow

Code A 250 ms at 2 l/min pilot flow

Features:

Proven, robust design - ensures reliable operation
Various function options - useable for numerous

Applications:

Good price-performance ratio - fast return of investment
Short delivery time - no warehousing necessary
Spool type proportional throttle valve
SAE61 flange - enables compact design
Maximum flow 380 l/min - optimum efficiency in relation to valve size
3 sizes, SAE 3/4“, 1“, 1 1/4“
Load compensated flow in combination with R5A and R5P

Applications:

Suitable for general hydraulic applications

Markets:

Industrial

Products specifications

Attribute name	Attribute value
UOM	EA	Max. Flow Rate	190 lpm
Pilot Inlet / Drain Locations	External PD (Y) / Internal PP (X); For Combination With R5A	Parker Group	Hydraulic
Seal Material	NBR	Parker Division	Industrial System
Response Time	250 ms
