FD9222

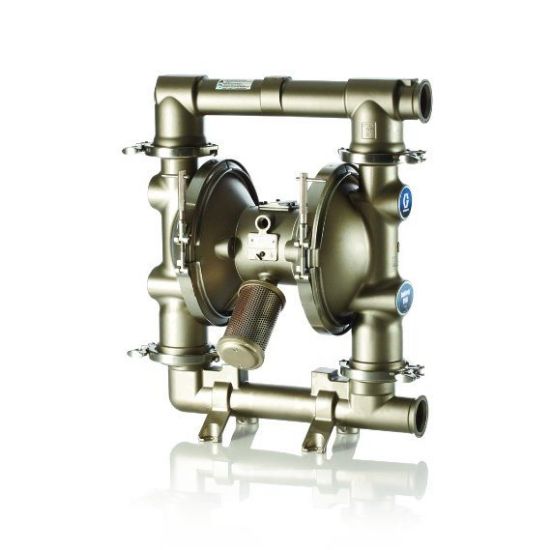

Graco’s SaniForce 2150 air-operated double diaphragm sanitary pumps have one of the best, most durable, lube-free air valves in the industry. Ideal for applications requiring high flow rates and portability, Graco’s dependable diaphragm pumps offer a wide range of food-grade elastomers including Santoprene, PTFE and overmolded EPDM/PTFE.

Features

• 2-1/2 in (63.5 mm) Tri-clamp connection
• Patented, lube-free air valve
• PTFE/EPDM Overmolded Diaphragms
• Flow rates up to 150 gpm (567 lpm) (568 lpm)
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21
• High volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from original container to smaller receptacles - up to 20,000 cps
• Suitable to pump such products as: concentrated fruit juices, sauces, pastes, starches, wine, food-grade oil, jams and jellies

Applications

• Sanitary
