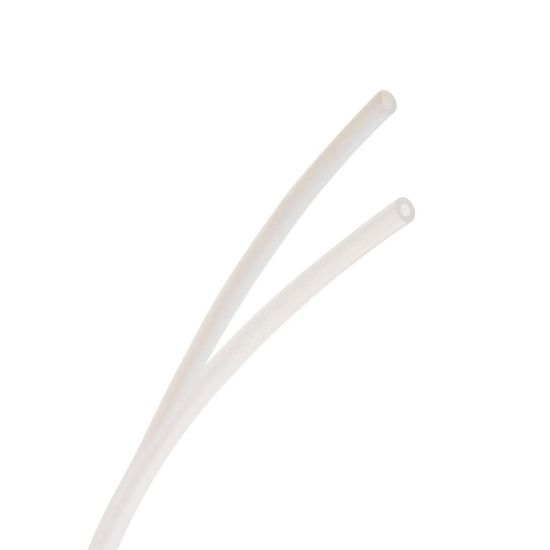

103-0250047-NT-50 - FEP Tubing

FEP Tubing - Series 103 and 203 are used when you need chemical resistant tubing and long continuous lengths or a very clear tubing. FEP tubing extrusion lengths can exceed 1,000 foot continuous when necessary.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	Backordered

SKU 103-0250047-NT-50

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/4
Product Type	Heavy Wall	Tube Wall Thickness	0.047
Standard Pack Qty (ft)	50.0	Tube Outside Diameter	0.25
Tube Inside Diameter	0.156	Media	Air
Minimum Bend Radius	3/4 inch	Maximum Operating Temperature	204 °C
Weight	0.028 lb/ft	Color	Natural
Compatible Fitting	TrueSeal™	Length per Package	50 ft
Tube Outside Diameter	0.25 inch	Minimum Operating Temperature	-75 °C
Specifications Met	ASTM D2116	Maximum Operating Pressure	23 bar
Tube Material	Fluorinated Ethylene Propylene (FEP)	Tube Inside Diameter	0.156 inch
Minimum Burst Pressure	1360 psi
