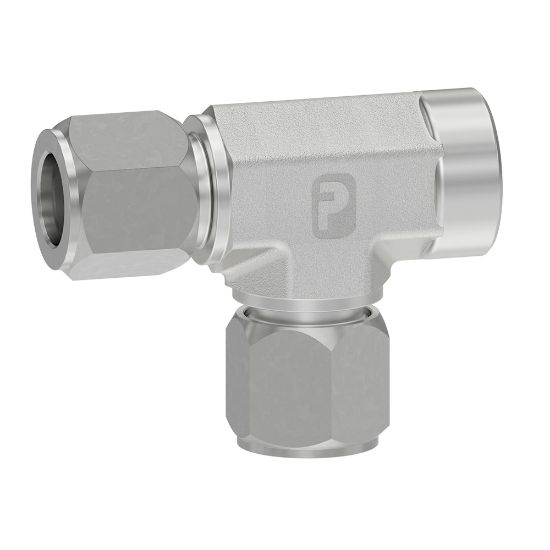

Ferulok 24° Flareless Fittings - 10 MBU-S

Name: Ferulok 24° Flareless Fittings - 10 MBU-S
SKU: 10 MBU-S

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:

Backordered

SKU 10 MBU-S

$52.04

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Body Material	Steel	Connection 2 Thread Size (inch)	1/2-14
Connection 3 Thread Size (inch)	na	Connection 1 Style	Male Flareless Bite Type
Connection 1 Tube O.D. (inch)	5/8	O-ring	na
Connection 2 Tube O.D. (inch)	na	Connection 2 Style	Female NPTF
Connection 3 Style	Male Flareless Bite Type	Connection 3 Tube O.D. (inch)	5/8
Connection Style	Run Tee	Division	Tube Fittings Division
Body Material	Steel	Connection 4 Size	na
Maximum Dynamic Pressure	3000 psi	Specifications Met	SAE J514
Connection Type	Flareless Bite Type	Connection 4 Tube Outside Diameter	na
