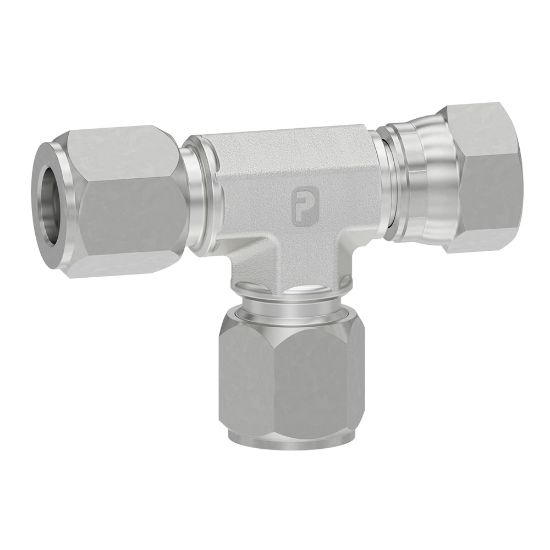

Ferulok 24° Flareless Fittings - 12 R6BU-SS

Name: Ferulok 24° Flareless Fittings - 12 R6BU-SS
SKU: 12 R6BU-SS

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:

Backordered

SKU 12 R6BU-SS

$174.36

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Body Material	Stainless Steel	Connection Style	Swivel Nut Run Tee
Connection 1 Style	Male Flareless Bite Type	Connection 2 Style	Female Flareless Swivel
Connection 3 Style	Male Flareless Bite Type	Connection 2 Thread Size (inch)	na
Connection 3 Thread Size (inch)	na	Connection 1 Tube O.D. (inch)	3/4
O-ring	na	Connection 2 Tube O.D. (inch)	3/4
Connection 3 Tube O.D. (inch)	3/4	Body Material	Stainless Steel
Connection 4 Size	na	Division	Tube Fittings Division
Maximum Dynamic Pressure	4000 psi	Connection Type	Flareless Bite Type
Connection 4 Tube Outside Diameter	na	Specifications Met	SAE J514
