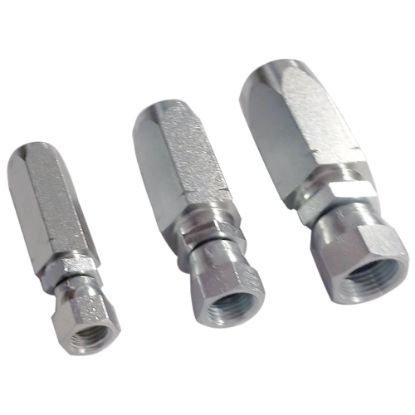

Field Attachable Fittings - 51R Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 51R Series field-attachable fittings are used with 510D and 518D 100R7 hoses from Parflex division. Unlike crimp fittings, Parker’s Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. Please note the couplings on these fittings are only intended for use on hoses that have not previously been in service.
Markets:
• Construction
• Aerial Lift
• Machine Tool
Features/Benefits:
• No crimper needed for installation
• Optional deep-well socket assembly allowing for quick, power assist assembly
• Full pressure and temperature rating for 100R7 (510D/518D) hoses
Applications:
• Medium pressure hydraulic service
Read More...Markets:
• Construction
• Aerial Lift
• Machine Tool
Features/Benefits:
• No crimper needed for installation
• Optional deep-well socket assembly allowing for quick, power assist assembly
• Full pressure and temperature rating for 100R7 (510D/518D) hoses
Applications:
• Medium pressure hydraulic service
| Action | SKU | Availability | Partner Available | Price | UOM | Hose I.D. (inch) | Product Style | Shape | Materials of Construction | Connection Size | Hose Inside Diameter | Connection Type | Port Size | Length | Fitting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20151R-6-6 | Backordered | 6 in stock | $34.60/each | EA | 0.375" | Male Taper Pipe Rigid | Straight | Steel | 3/8"-18 inch Thread | 10 mm | NPT | 0.375 inch | 2.9 inch | Field Attachable | |
| 20351R-4-3 | Backordered | 75 in stock | $35.20/each | EA | 0.1875" | Male JIC 37° Rigid | Straight | Steel | 7/16"-20 inch Thread | 5 mm | SAE Thread | 0.25 inch | 2.54 inch | Field Attachable | |
| 20351R-4-4 | 46 in stock | 133 in stock | $37.24/each | EA | 0.25" | Male JIC 37° Rigid | Straight | Steel | 7/16"-20 inch Thread | 6 mm | SAE Thread | 0.25 inch | 2.63 inch | Flare | |
| 20351R-6-6 | 18 in stock | 146 in stock | $47.06/each | EA | 0.375" | Male JIC 37° Rigid | Straight | Steel | 9/16"-18 inch Thread | 10 mm | SAE Thread | 0.375 inch | 2.61 inch | Field Attachable | |
| 20351R-8-8 | 7 in stock | 98 in stock | $57.59/each | EA | 0.5" | Male JIC 37° Rigid | Straight | Steel | 3/4"-16 inch Thread | 13 mm | SAE Thread | 0.5 inch | 3.08 inch | Field Attachable | |
| 20651R-4-3 | 2 Limited Stock | 121 in stock | $34.44/each | EA | 0.1875" | SAE JIC 37° Swivel | Straight | Steel | 7/16"-20 inch Thread | 5 mm | SAE Thread | 6 mm | 2.56 inch | Field Attachable | |
| 20651R-4-4 | 35 in stock | 263 in stock | $35.71/each | EA | 0.25" | SAE JIC 37° Swivel | Straight | Steel | 7/16"-20 inch Thread | 6 mm | SAE Thread | 6 mm | 2.65 inch | Field Attachable | |
| 20651R-6-6 | 29 in stock | 329 in stock | $42.63/each | EA | 0.375" | SAE JIC 37° Swivel | Straight | Steel | 9/16"-18 inch Thread | 10 mm | SAE Thread | 10 mm | 2.93 inch | Flare | |
| 20651R-8-8 | 19 in stock | 239 in stock | $56.13/each | EA | 0.5" | SAE JIC 37° Swivel | Straight | Steel | 3/4"-16 inch Thread | 13 mm | SAE Thread | 0.5 inch | 3.3 inch | Field Attachable | |
| 2JS51R-6-6 | Backordered | 20 in stock | $121.05/each | EA | 0.375" | Seal-lok Female Swivel Straight - Long | Straight | Steel | 9/16"-18 inch Thread | 10 mm | SAE Thread | 0.375 inch | 2.83 inch | Field Attachable | |
| 2JS51R-8-8 | Backordered | Backordered | $166.37/each | EA | 0.5" | Seal-lok Female Swivel Straight - Long | Straight | Steel | 3/4"-16 inch Thread | 13 mm | SAE Thread | 0.5 inch | 3.13 inch | Face Seal |
