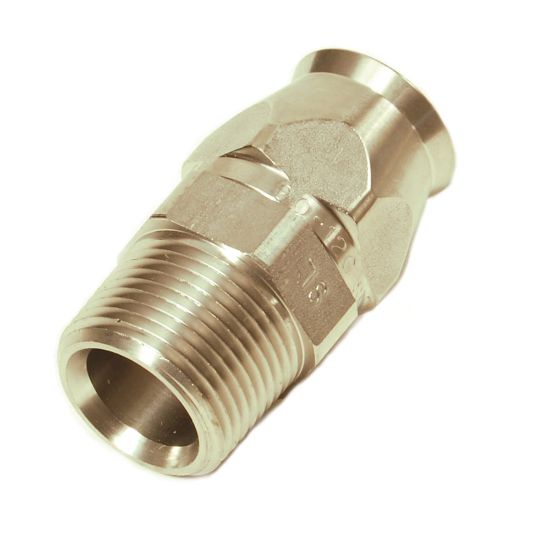

20190-16-16 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	35 in stock

SKU 20190-16-16

$59.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Male NPTF Pipe - Rigid - Straight
Hose I.D. (inch)	0.875"	Connection 2 Size	1"-11-1/2
Length (inch)	2.46"	Shape	Straight
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Hex Size	1-3/8 inch (see drawing legend H)	Connection 2 Size	1"-11-1/2 inch Thread
Connection 2 Type	Rigid	Industry	Semiconductor
Fitting Length	62 mm	For Fluid Type	Pharmaceutical Fluids
Dimensional Weight	0.1029 lb	Connection 1 Size	22 mm
Connection Length	54 mm	Hex Size 1	1-3/8 inch (see drawing legend J)
Body Material	Steel (Socket)
