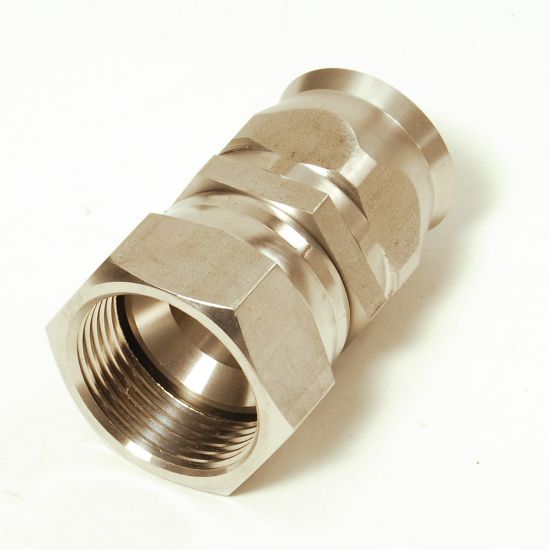

20690-8-8 - Field Attachable Fittings for PTFE Hose - 90 Series

Name: 20690-8-8 - Field Attachable Fittings for PTFE Hose - 90 Series
SKU: 20690-8-8
Price: 26.44 USD
Availability: LimitedAvailability

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:

2 Limited Stock

Kansas City, KS	1
Joplin, MO	1

Partner Available:

80 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 20690-8-8

$26.44/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female JIC 37° - Swivel - Straight
Hose I.D. (inch)	0.406"	Connection 2 Size	3/4"-16
Length (inch)	1.98"	Shape	Straight
Specifications Met	N/A	Coating	Chromium 6 Free-plated
Configuration	Hose to Port	Connection 1 Size	-8 (Size)
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hex Size	7/8 inch (see drawing legend H)	For Fluid Type	Water
Industry	Food & Beverage	Fitting Length	50 mm
Maximum Operating Pressure	20.7 MPa	Connection 2 Type	Female
Connection 2 Size	3/4"-16 inch Thread	Hex Size 1	7/8 inch (see drawing legend J)
Body Material	Brass (Nipple and Ferrule)	Connection Length	50 mm
Dimensional Weight	0.0234 lb
