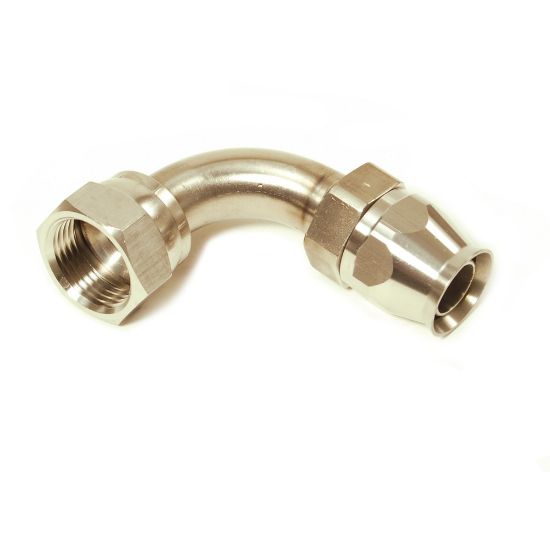

Field Attachable Fittings for PTFE Hose - 90 Series - 23990-4-4

Name: Field Attachable Fittings for PTFE Hose - 90 Series - 23990-4-4
SKU: 23990-4-4

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:

Backordered

SKU 23990-4-4

$26.67

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.188"
Connection 2 Size	7/16"-20	Length (inch)	1.67"
Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop	Brand	PARKER
Industry	Industrial	Division	Parflex Division
Body Material	Steel	Technology	Fluid & Gas Handling
Specifications Met	N/A	Product Series	90
Coating	Chromium 6 Free-plated	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
For Fluid Type	Oil	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Hex Size	9/16 inch (see drawing legend H)	Connection 1 Size	3/16 inch Hose I.D.
Connection 2 Size	7/16"-20 inch Thread	Connection 2 Type	Swivel
Hex Size 1	9/16 inch (see drawing legend J)	Application	Pneumatics
Connection Length	43 mm	Shape	Elbow 90° Short Drop
Fitting Length	1.67 inch (see drawing legend A)	Dimensional Weight	0.1151 lb
