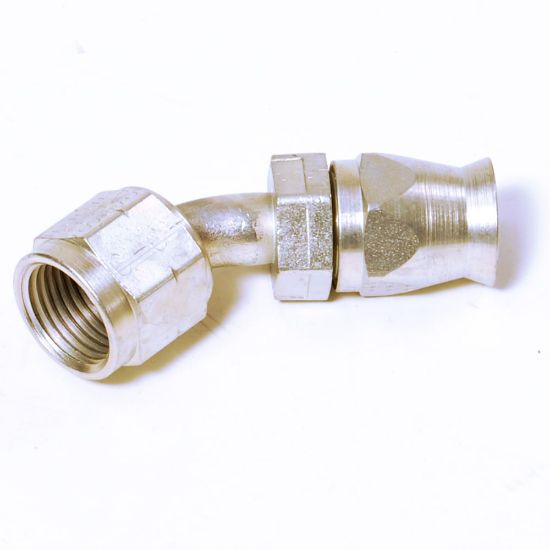

Field Attachable Fittings for PTFE Hose - 90 Series - 27990-12-12

Name: Field Attachable Fittings for PTFE Hose - 90 Series - 27990-12-12
SKU: 27990-12-12

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:

Backordered

SKU 27990-12-12

$65.85

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	0.625"
Length (inch)	2.51"	Connection 2 Size	1-1/16"-14
Product Style	Female SAE 45 / Swivel - 45° Elbow	Brand	PARKER
Division	Parflex Division	Body Material	Steel
Technology	Fluid & Gas Handling	Specifications Met	N/A
Product Series	90	Coating	Chromium 6 Free-plated
Division	Parflex Division	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Hex Size	1-1/8 inch (see drawing legend H)	Connection 1 Size	5/8 inch Hose I.D.
Industry	Healthcare & Life Sciences	Application	Tools & Equipment
Fitting Length	3.03 inch (see drawing legend A)	For Fluid Type	Gases
Connection 2 Size	1-1/16"-14 inch Thread	Connection 2 Type	45° Flare SAE
Hex Size 1	1-1/4 inch (see drawing legend J)	Connection Length	2 inch Cut-off allowance (see drawing legend B)
Shape	Elbow 90°	Dimensional Weight	0.5886 lb
