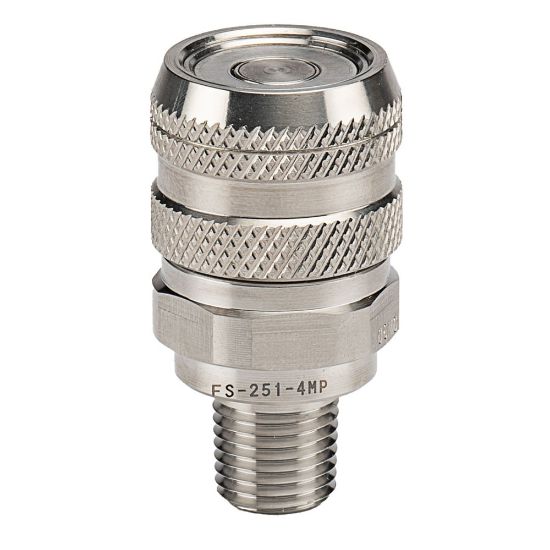

FS-251-4MP - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	67 in stock

SKU FS-251-4MP

$324.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Type	Male NPTF	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Hex Size	1 inch
Maximum Operating Temperature	400 °F	Body Material	Stainless Steel 316
Minimum Operating Temperature	-65 °F	Seal Material	Ethylene Propylene
Maximum Operating Pressure	2000 psi	Flow Rate	3 Gal/min
Valve Type	Non-spill

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
