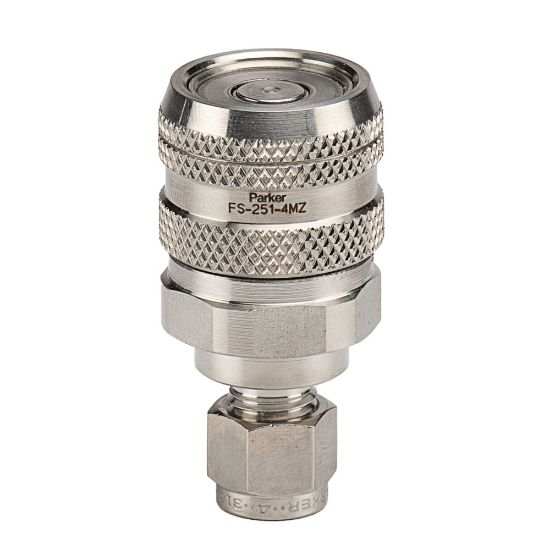

FS-251-4MZ - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU FS-251-4MZ

$373.81/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Coupling Half	Female Coupler	Connection Type	Female CPI Flareless Tube Fitting
Connection Thread Size (inch)	-4	Maximum Operating Temperature	400 °F
Body Material	316 Stainless Steel	Seal Material	Fluorocarbon
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	2000 psi
Flow Rate	3 Gal/min	Valve Type	Non-spill
