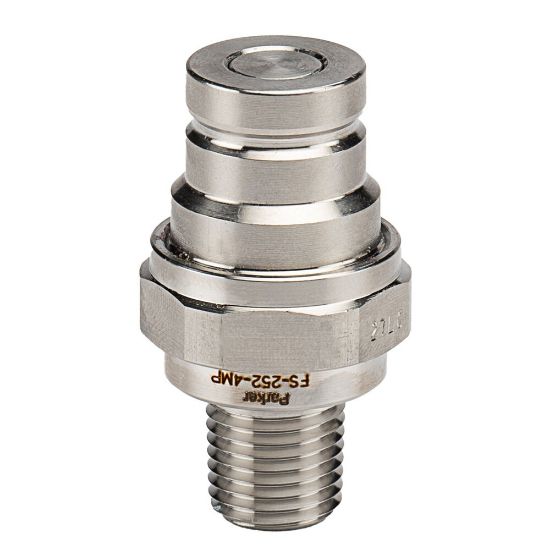

FS-252-4MP - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	76 in stock

SKU FS-252-4MP

$167.64/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male NPTF
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Valve Type	Non-spill
Maximum Operating Pressure	2000 psi	Minimum Operating Temperature	-15 °F
Maximum Operating Temperature	400 °F	Flow Rate	3 Gal/min
Seal Material	Fluorocarbon	Body Material	Stainless Steel 316
Hex Size	1 inch
