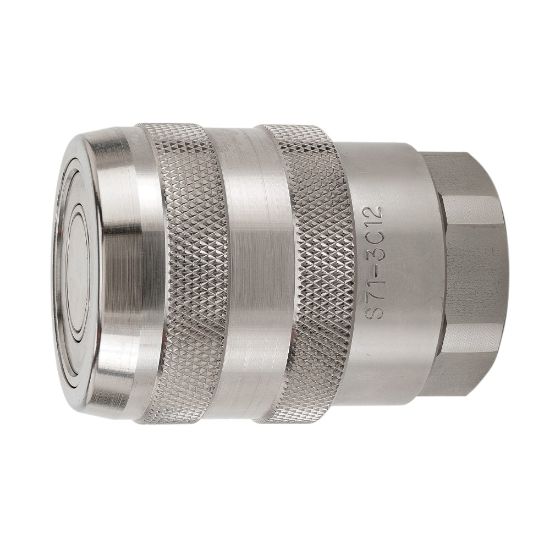

Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series - S71-3C12-12FVSL

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.
Availability:
Backordered
SKU S71-3C12-12FVSL
$784.69
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody Size (inch)3/4
Maximum Operating Pressure5000Connection Thread Size (inch)3/4 - 14
Body Material316 Stainless SteelConnection TypeFemale NPSF
Coupling HalfFemale CouplerMinimum Operating Temperature-15 °F
Maximum Operating Temperature400 °FValve TypeNon-spill
Product TypePush to connectApplicationHydraulics
DivisionQuick Coupling DivisionBody MaterialStainless Steel
Seal MaterialFluorocarbonPlating Typen/a
Hex Size1.75 inch
