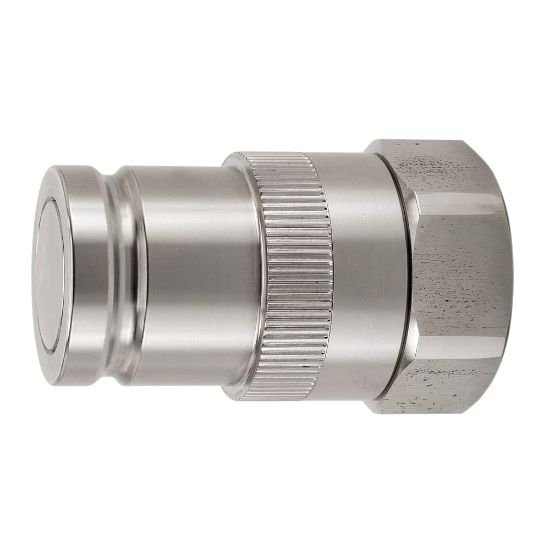

Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series - SH71-3N6-6F

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.
Availability:
Backordered
SKU SH71-3N6-6F
$513.10
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialHigh pressure stainless steel
Connection TypeFemale NPSFMaximum Operating Pressure10000
Connection Thread Size (inch)3/8 - 18Coupling HalfMale Nipple
Body Size (inch)3/8Valve TypeNon-spill
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Product TypePush to connectDivisionQuick Coupling Division
Hex Size1.00 inchPlating Typena
Seal MaterialNitrileBody MaterialStainless Steel
ApplicationHydraulic
