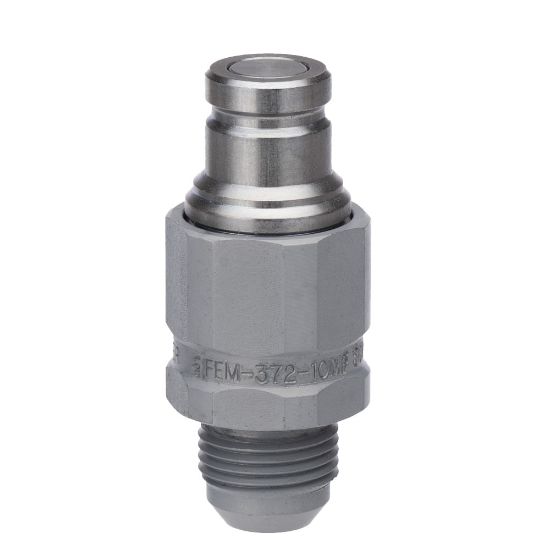

FEM-372-10MF - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU FEM-372-10MF

$44.16/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Maximum Operating Pressure	5000	Connection Type	Male UNF
Connection Thread Size (inch)	7/8 - 14	Coupling Half	Male Nipple
Valve Type	Non-spill	Minimum Operating Temperature	-40
Body Material	Steel	Plating Type	Zinc Nickel
Hex Size	30	Specifications Met	ISO
Seal Material	Nitrile	Maximum Operating Temperature	250
Flow Rate	6
