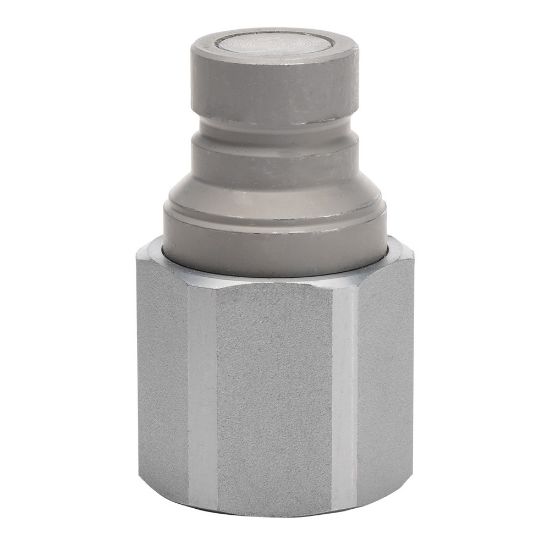

FEM-752-12FP - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series

Name: FEM-752-12FP - Flat Face, ISO 16028, Hydraulic Quick Couplings - FEM Series
SKU: FEM-752-12FP
Price: 82.91 USD
Availability: InStock

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:

20 in stock

TOPEKA, KS	6
COLUMBIA, MO	3
Springfield, MO	2
Kansas City, KS	2
Joplin, MO	2
Peoria, IL	2
Olivette, MO	2
Wichita, KS	1

Partner Available:

96 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU FEM-752-12FP

$82.91/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Maximum Operating Pressure	5000	Body Size (inch)	3/4
Connection Type	Female UN	Connection Thread Size (inch)	3/4 - 14
Valve Type	Non-spill	Body Material	Steel
Minimum Operating Temperature	-40 °F	Hex Size	46 mm
Flow Rate	26 Gal/min	Maximum Operating Temperature	250 °F
Plating Type	Zink Nickel	Specifications Met	ISO 16028
Dimensional Weight	0.12464028776978417 lb	Seal Material	Polyurethane/Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
