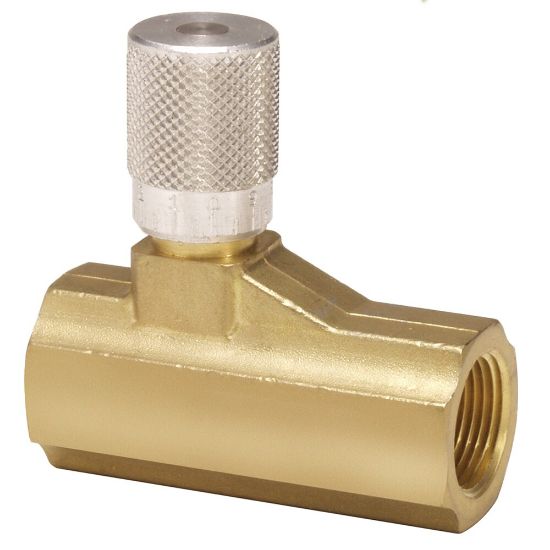

003371002 - Flow Control Valve - 337 Series

The 337 series flow control valve adjustment knob features a numerical micrometer position for visual indication, and includes a fine taper needle which provides precise flow control even at low flow rates.

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	49 in stock

SKU 003371002

$107.25/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Port Size (inch)	3/8	Operating Pressure	0 to 250
Mounting Type	Inline	Port Type	NPT
Flow Rate	15 to 140 SCFM (metered)	Flow Coefficient	0.28 to 2.62 Cv (metered)
Port Connection	Female to Female	Seal Material	Urethane
Port Size	3/8	Operation Type	Knob with Micrometer Position
Needle Material	Stainless Steel	Media	Air
Lubricant	None	Body Material	Brass
Options	Extended Temperature Version

Product resources

Literature and Reference Materials

0600P Catalog_Accessories (PDF)
