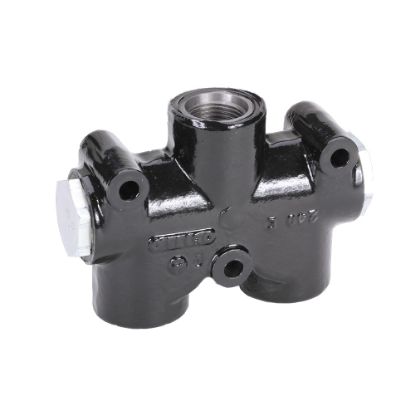

Flow Divider – PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s PD and PDC accessory valves split the flow in three ratios between the two hydraulic lines. Flow through the series PD flow divider cannot be reversed. Flow through the PDC flow divider can be combined in the reverse direction and synchronized in both directions.
Series PD and PDC flow dividers will divide the inlet flow to ±10% of the specified outlet flow when used within recommended capacities. In addition, many actuators can displace fluid different from the ratio of the divider.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Pressure Compensated
• High tensile cast iron body
• Cross drilled spool provides accurate metering
Applications:
• Suitable for various mobile applications
Read More...Series PD and PDC flow dividers will divide the inlet flow to ±10% of the specified outlet flow when used within recommended capacities. In addition, many actuators can displace fluid different from the ratio of the divider.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Pressure Compensated
• High tensile cast iron body
• Cross drilled spool provides accurate metering
Applications:
• Suitable for various mobile applications
| Action | SKU | Availability | Partner Available | Price | UOM | Flow Rate | Ratio | Port Size | Mounting Type | Maximum Operating Pressure | Weight | Maximum Operating Pressure | Mounting Type | Flow Rate | Body Material | Connection Type | Minimum Operating Temperature | Ratio | Function | Connection Size | Actuation Type | Seal Material | Maximum Flow Rate | Configuration | Maximum Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-10-50 | Backordered | Backordered | $363.20/each | EA | 5-20 GPM | 50/50 | SAE-10 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 5-20 Gal/min | High Strength Cast Iron | |||||||||||
| PD-10-60 | Backordered | 1 Limited Stock | $381.36/each | EA | 5-20 GPM | 60/40 | SAE-10 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 5-20 Gal/min | High Strength Cast Iron | |||||||||||
| PD-12-50 | Backordered | Backordered | $381.36/each | EA | 20-35 GPM | 50/50 | SAE-12 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | |||||||||||
| PD-12-60 | Backordered | Backordered | $381.36/each | EA | 20-35 GPM | 60/40 | SAE-12 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | |||||||||||
| PD-12-70 | Backordered | Backordered | $381.36/each | EA | 20-35 GPM | 70/30 | SAE-12 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | |||||||||||
| PD-50-50 | Backordered | 6 in stock | $381.36/each | EA | 5-20 GPM | 50/50 | 1/2" NPT | In-line | 2500 PSI | 7 lb | 2000 psi | In-Line | 5-20 Gal/min | High Strength Cast Iron | NPT | -40 °F | 50/50 | Flow Divider | 1/2" | Hydraulic Pressure | Nitrile | n/a | Flow Divider | +200 °F | |
| PD-50-60 | Backordered | Backordered | $381.36/each | EA | 5-20 GPM | 60/40 | 1/2" NPT | In-line | 2500 PSI | 7 lb | 2000 psi | In-Line | 5-20 Gal/min | High Strength Cast Iron | NPT | -40 °F | 60/40 | Flow Divider | 1/2" | Hydraulic Pressure | Nitrile | n/a | Flow Divider | +200 °F | |
| PD-75-50 | Backordered | 4 in stock | $363.20/each | EA | 20-35 GPM | 50/50 | 3/4" NPT | In-line | 2500 PSI | 7 lb | 2000 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | NPT | -40 °F | 50/50 | Flow Divider | 3/4" | Hydraulic Pressure | Nitrile | n/a | Flow Divider | +200 °F | |
| PD-75-60 | Backordered | Backordered | $381.36/each | EA | 20-35 GPM | 60/40 | 3/4" NPT | In-line | 2500 PSI | 7 lb | 2000 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | NPT | -40 °F | 60/40 | Flow Divider | 3/4" | Hydraulic Pressure | Nitrile | n/a | Flow Divider | +200 °F | |
| PDC-10-50 | Backordered | Backordered | $473.60/each | EA | 5-20 GPM | 50/50 | SAE-10 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 5-20 Gal/min | High Strength Cast Iron | SAE | -40 °F | 50/50 | Flow Divider | #10 | Hydraulic Pressure | Nitrile | n/a | Flow Divider/Combiner | +200 °F | |
| PDC-12-50 | Backordered | 5 in stock | $473.60/each | EA | 20-35 GPM | 50/50 | SAE-12 | In-line | 2500 PSI | 7 lb | 2500 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | SAE | -40 °F | 50/50 | Flow Divider | #12 | Hydraulic Pressure | Nitrile | n/a | Flow Divider/Combiner | +200 °F | |
| PDC-50-50 | Backordered | Backordered | $473.60/each | EA | 5-20 GPM | 50/50 | 1/2" NPT | In-line | 2500 PSI | 7 lb | 2000 psi | In-Line | 5-20 Gal/min | High Strength Cast Iron | SAE | -40 °F | 50/50 | Flow Divider | 1/2" | Hydraulic Pressure | Nitrile | n/a | Flow Divider/Combiner | +200 °F | |
| PDC-75-50 | Backordered | Backordered | $473.60/each | EA | 20-35 GPM | 50/50 | 3/4" NPT | In-line | 2500 PSI | 7 lb | 2000 psi | In-Line | 20-35 Gal/min | High Strength Cast Iron | NPT | -40 °F | 50/50 | Flow Divider | 3/4" | Hydraulic Pressure | Nitrile | n/a | Flow Divider/Combiner | +200 °F |
