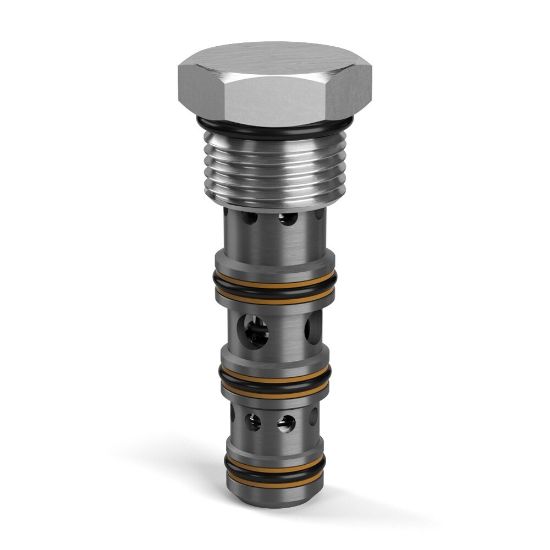

Flow Divider/Combiner Valves - L04A3-20-20N

Name: Flow Divider/Combiner Valves - L04A3-20-20N
SKU: L04A3-20-20N

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU L04A3-20-20N

$249.57

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	16 GAL/MIN, 60 L/MIN	Ratio	50/50
Standard Flow Rate Setting	3.2-10.6 GAL/MIN, 12-40 L/MIN	Actuation Type	Interlocking Spools
Seal Material	Nitrile	Division	Hydraulic Cartridge Systems Division
Function	Flow Divider/Combiner	Standard Flow Rate Setting	3.2-10.6 Gal/min
Maximum Flow Rate	60 L/min	Operating Temperature	-34 to +121 °C
Division	Mobile Hydraulic Systems Division Europe	Body Material	n/a
Maximum Operating Temperature	+121 °C	Flow Rate	60 L/min
Weight	0.12 kg	Minimum Operating Temperature	-34 °C
Configuration	n/a	Maximum Inlet Pressure Rating	6000 psi
Flow Rate Accuracy	10%	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Connection Type	n/a	Ratio	50/50
Maximum Operating Pressure	6000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Installation Torque	50 Nm	Operation Type	Automatic
Connection Size	n/a	Cavity Size	C10-4
