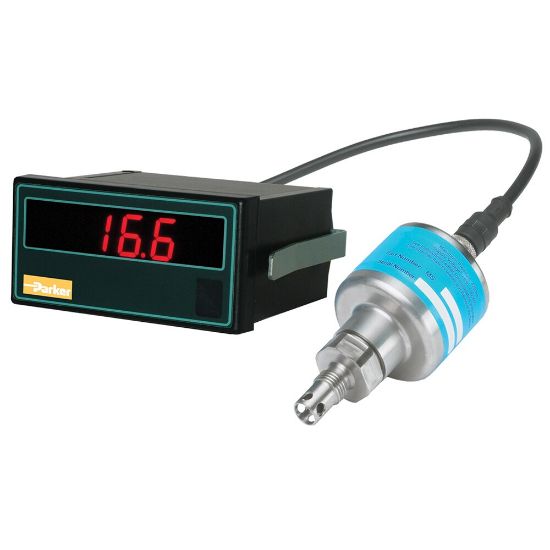

MS1503 - Fluid Moisture Sensor – iCountMS Range

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 56 days
Partner Available:	Backordered

SKU MS1503

Products specifications

Attribute name	Attribute value
UOM	EA	Fluid Type	Petroleum, Synthetic Oils
Options	Standard	Port Type	BSPT
Port Size	1/4"	Signal Output	1-5 Vdc, 4-20 mA
Ingress Protection Rating	IP68	Diameter	40 mm
Minimum Fluid Temperature	-20 °C	Industry	Power Generation
For Fluid Type	Petroleum	Specifications Met	CE Certification
Operating Pressure	10 bar	Electrical Requirements	8 to 30 VDC
Accuracy	+/- 5 %	Connection Size	M12X1 - 5 way
Weight	300 g	Materials of Construction	Stainless Steel 303
Product Style	Moisture Sensor	Sensing Method	Relative Humidity RH cell %
Length	88 mm	Height	40 mm
Seal Material	Fluorocarbon	Body Material	Aluminium
Maximum Fluid Temperature	85 °C
