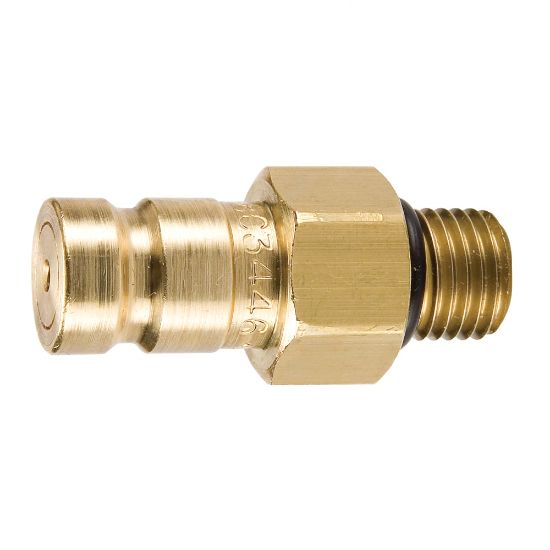

BPDFS341 - Fluid Sampling, Diagnostic Quick Couplings – PDFS and BPDFS

Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	26 in stock

SKU BPDFS341

$24.79/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Style	Male
Connection Thread Size (inch)	7/16 - 20 ORB	Coupling Half	Nipple
Body Size	1/8 inch	Body Material	Brass
Maximum Operating Pressure	500 psi	Seal Material	Fluorocarbon
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Coupling Half	Nipple

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety instructions Quick Couplings (PDF)
