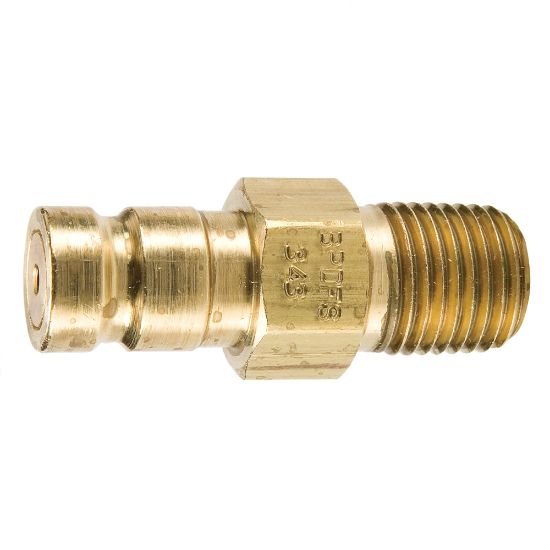

BPDFS343 - Fluid Sampling, Diagnostic Quick Couplings – PDFS and BPDFS

Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	12 in stock

SKU BPDFS343

$25.04/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18 NPTF
Coupling Half	Nipple	Thread Style	Male
Minimum Operating Temperature	-40 °F	Coupling Half	Nipple
Maximum Operating Temperature	250 °F	Body Material	Brass
Seal Material	Fluorocarbon	Body Size	1/8 inch
Maximum Operating Pressure	500 psi
