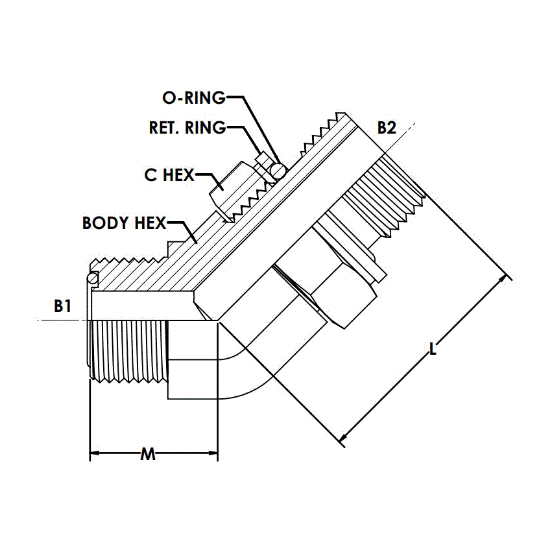

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FS7102-06-06-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7102-06-06-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Material	Steel
Shape	45 Degree Angle	Type	Elbow
Thread Size 2	3/8-19	Series	FS7102-NWO-FG-ORR
Thread Specification 1	SAE J1453	Thread Size 1	11/16-16
Raw Material Type	Steel Forging	O-Ring/Seal Material	NBR
Thread Type 2	Male BSPP Adjustable ORR	Thread Specification 2	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200
Plating	CR3	Thread Type	Male face Seal O-Ring
