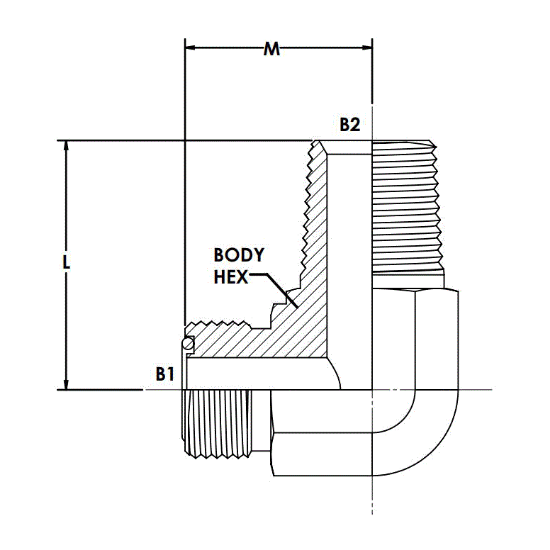

FS7200-06-06-SS

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7200-06-06-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Elbow
Shape	90 Degree Angle	Thread Size 2	3/8-19
Series	FS7200-FG	Material	Stainless Steel
Thread Type 2	Male BSPT (R)	Thread Type	Male face Seal O-Ring
Thread Specification 2	ISO 7-1	Raw Material Type	Stainless Steel Forging
Thread Specification 1	SAE J1453	Thread Size 1	11/16-16
O-Ring/Seal Material	NBR
