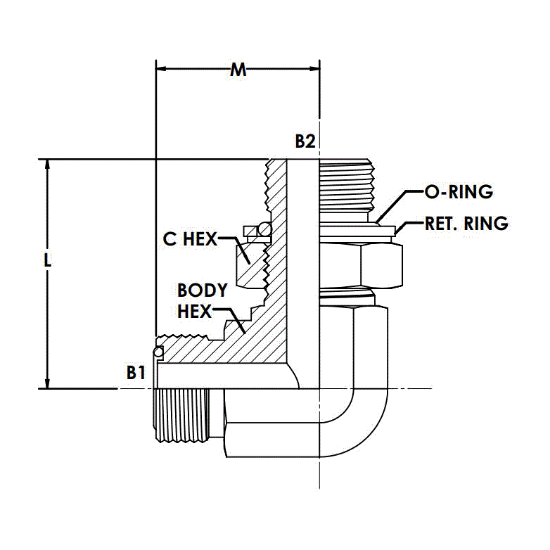

FS7202-10-08-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7202-10-08-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Elbow
Thread Size 2	1/2-14	Shape	90 Degree Angle
Material	Steel	Series	FS7202-NWO-FG-ORR
Raw Material Type	Steel Forging	Thread Type	Male face Seal O-Ring
Plating	CR3	Thread Size 1	1-14
Thread Specification 2	O-Ring and Retaining Ring; for ISO 1179 Port; ISO 8434-6; BS 5200	Thread Specification 1	SAE J1453
Thread Type 2	Male BSPP Adjustable ORR	O-Ring/Seal Material	NBR
