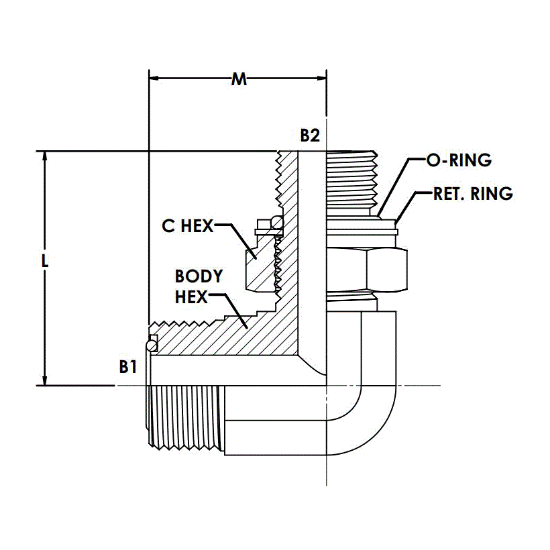

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FS7205-06-12-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7205-06-12-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Size 2	M12X1.5
Shape	90 Degree Angle	Material	Steel
Series	FS7205-NWO-FG-ORR	Type	Elbow
Plating	CR3	Thread Specification 2	O-Ring and Retaining Ring
Thread Type	Male face Seal O-Ring	Thread Specification 1	SAE J1453
Thread Type 2	Male Metric Adjustable ORR	Raw Material Type	Steel Forging
Thread Type 3	ISO 9974	O-Ring/Seal Material	NBR
Thread Size 1	11/16-16
