*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

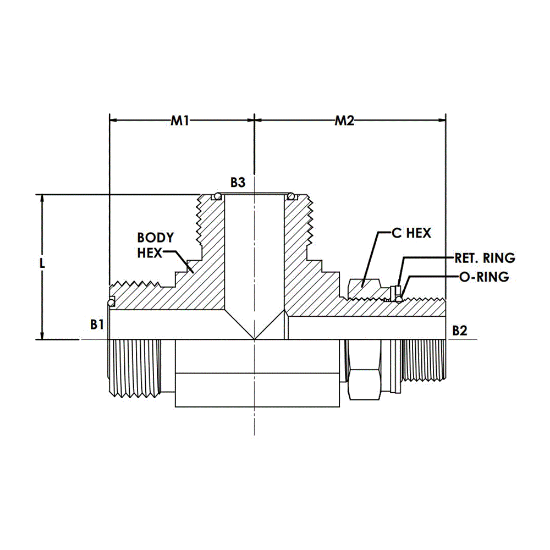

FS7215-06-16-06-NWO-FG

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7215-06-16-06-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Series	FS7215-NWO-FG-ORR
Standard	Prop-65 Warning	Style	Tee Adapter
Thread Size 2	M16 x 1.5	Raw Material Type	Steel Forging
Thread Size 1	11/16-16	O-Ring/Seal Material	NBR
Thread Specification 2	ISO 9974	Plating	CR3
Thread Size 3	11/16-16	Thread Specification 3	SAE J1453
Thread Type 3	Male Face Seal O-Ring	Thread Type 1	Male Face Seal O-Ring
Thread Specification 1	SAE J1453	Thread Type 2	Male Metric Adjustable ORR
