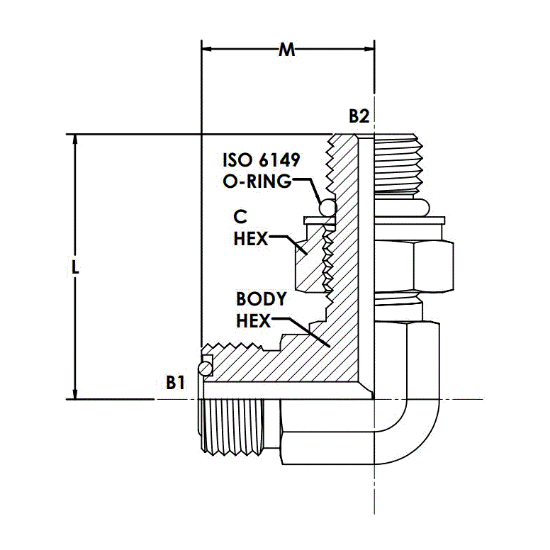

FS7650-16-27-NWO-FG

Manufacturer: Brennan

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU FS7650-16-27-NWO-FG

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90 Degree Angle
Type	Elbow	Series	FS7650-NWO-FG-ISO 6149
Thread Size 2	M27X2.0	Material	Steel
Thread Size 1	1-7/16-12	Thread Type	Male face Seal O-Ring
Thread Specification 2	ISO 6149 O-Ring Port	Thread Specification 1	SAE J1453
Raw Material Type	Straight Steel	Plating	CR3
O-Ring/Seal Material	NBR	Thread Type 2	Male Metric Adjustable ISO6149
