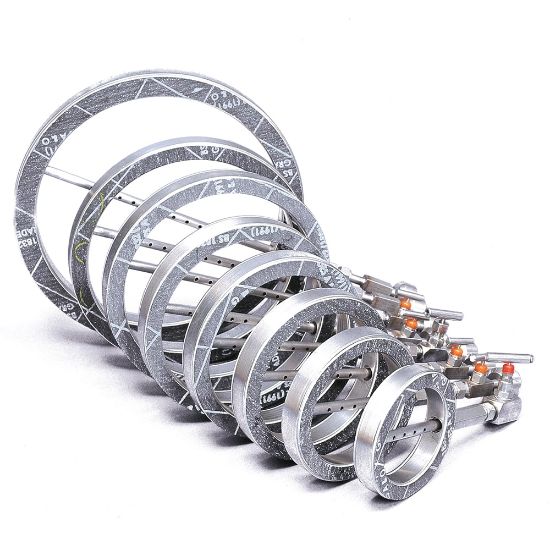

FG-K1-128-KW - Fuel Drip Bunker Samplers

Parker bunker samplers are designed to provide a representative sample of the entire fuel delivery. Manufactured from stainless steel.

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU FG-K1-128-KW

$2,624.28/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Drip Sampler
Pipe Outside Diameter	200 mm	Quantity per Box	1
Outside Diameter	266 mm	Signal Output	n/a
Industry	Marine	Size	515 to 840 x 31.5 x 95 to 401 mm (Height x Width x Diameter)
Electrical Requirements	n/a	Seal Material	Nitrile Rubber
Sensor Connection	n/a	Features	Simple and effective continuous fuel sampling for the entire delivery as ISO 13739<br/>ASTM D 4057: 2000 Standard practice for manual sampling of petroleum and petroleum products
Communication Interface	n/a	Ingress Protection Rating	N/A
Wetted Material	Stainless steel, PTFE, non-asbestos grade Y gasket (aramid/glass fibres and nitrile rubber)	Options	Wide range of line diameters: 50 mm (2") up to 300 mm (12") in 25 mm (1")
Port Type	Pipe bore	Weight	3 to 12
Connection Type	Multiple line diameter versions from 50 mm to 350 mm	Operating Pressure	40 bar
Sensing Method	n/a	Product Style	Sample Capture Device
For Fluid Type	Lube Oil Fuel	Flow Rate	n/a
Height	681 mm	Specifications Met	ISO 3170
Minimum Fluid Temperature	-58 °F	Accessories Included	Sample containers, anti-tamper locks, bottle seals and labels available separately
Port Size	8 inch	Cycle Time	n/a
Maximum Fluid Temperature	167 °F	Body Material	Stainless Steel
Accuracy	n/a	Sensing Range	n/a
Materials of Construction	Stainless Steel
