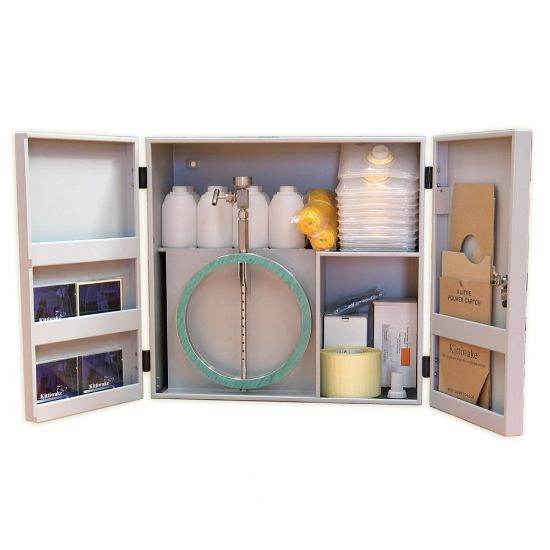

Fuel Drip Bunker Samplers - FG-K16091-KW

Name: Fuel Drip Bunker Samplers - FG-K16091-KW
SKU: FG-K16091-KW

Parker bunker samplers are designed to provide a representative sample of the entire fuel delivery. Manufactured from stainless steel.

Availability:

Backordered

SKU FG-K16091-KW

$13,566.34

Products specifications

Attribute name	Attribute value
UOM	EA	Quantity per Box	1
Product Style	Bunker Sample Storage System	Maximum Fluid Temperature	75 °C
Product Style	Sample Capture Device	Division	Hydraulic & Industrial Process Filtration Division EMEA
Sensing Method	n/a	For Fluid Type	Lube Oil Fuel
Specifications Met	ASTM D 4057	Industry	Marine
Division	Hydraulic & Industrial Process Filtration Division EMEA	Signal Output	n/a
Product Type	Sampling System	Electrical Requirements	n/a
Seal Material	Nitrile Rubber	Sensor Connection	n/a
Size	515 to 840 x 31.5 x 95 to 401 mm (Height x Width x Diameter)	Height	840 mm
Outside Diameter	650 x 620 x 275 mm	Minimum Fluid Temperature	-58 °F
Port Type	Pipe bore	Ingress Protection Rating	N/A
Accessories Included	Sample containers, anti-tamper locks, bottle seals and labels available separately	Operating Pressure	580 psi
Communication Interface	n/a	Options	Wide range of line diameters: 50 mm (2") up to 300 mm (12") in 25 mm (1")
Weight	3 to 12	Wetted Material	Stainless steel, PTFE, non-asbestos grade Y gasket (aramid/glass fibres and nitrile rubber)
Connection Type	Multiple line diameter versions from 50 mm to 350 mm	Accuracy	n/a
Sensing Range	n/a	Port Size	14 inch
Technology	Hydraulics	Operating Temperature	-50 to 75 °C
Brand	Kittiwake	Body Material	Stainless Steel
Materials of Construction	Stainless Steel	Flow Rate	n/a
Features	Simple and effective continuous fuel sampling for the entire delivery as ISO 13739<br/>ASTM D 4057: 2000 Standard practice for manual sampling of petroleum and petroleum products	Width	31.5 mm
Cycle Time	n/a
